Automatic Fertigation Controller System

Short Description:

Using advanced computer, industrial automation and internet of things technology, according to the law of fertilizer demand at different growth stages of crops, using all-water-soluble fertilizer as raw material, accurately controlling the proportion of nutrients, and accurately formulating the liquid formula fertilizer required for various crops, according to needs. Quantitative automated fertilization.   Specification: Name fertigation machine system for hydroponic Automation Ful...


  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    HTB1x2iEdFGWBuNjy0Fbq6z4sXXah

    Using advanced computer, industrial automation and internet of things technology, according to the law of fertilizer demand at different growth stages of crops, using all-water-soluble fertilizer as raw material, accurately controlling the proportion of nutrients, and accurately formulating the liquid formula fertilizer required for various crops, according to needs. Quantitative automated fertilization.



    Specification:

    Name fertigation machine system for hydroponic
    Automation Full Automation
    Voltage DC220V/380V
    Size 1400*700*1400mm
    Rated power 3000W
    Weight 75kg
    Solenoid valve 5pcs / 8pcs / 20pcs or customized
    Pipe interface size DN32mm
    Material Galvanized steel
    Components Fertilize pump/ Flow sensor/ Frequency converter/ Solenoid valve etc.



    Advantage

    • Modular and scalable for on soil or substrate application with minimal investment;
    • Efficient use of water, fertilizer and energy;
    • Broad range of dosing channels’ flow rates;
    • Works for both volumetric or proportional fertigation;
    • Venturi operating principle, no moving parts;
    • Easy integration into existing irrigation systems;
    • Highly accurate dosing channels;
    • Quick action dosing valves;
    • Fast and efficient receipe adjustment;
    • Manual or fully automated operations;
    • Wide range of integrated accessories and peripherals;
    • Components and piping built in high quality PVC;
    • Alluminium, corrosion resistant frame with adjustable legs.

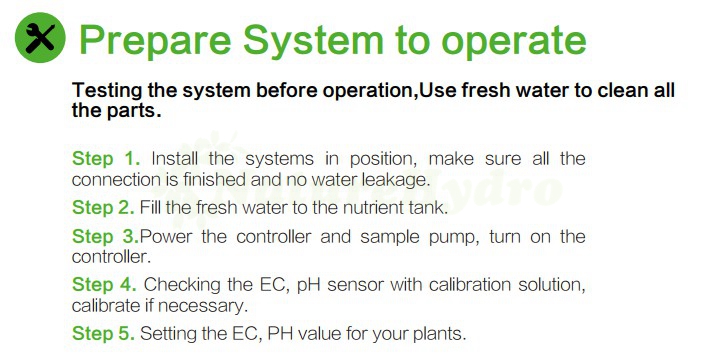

    H496330e9cda8494592603a2558416e60W_副本

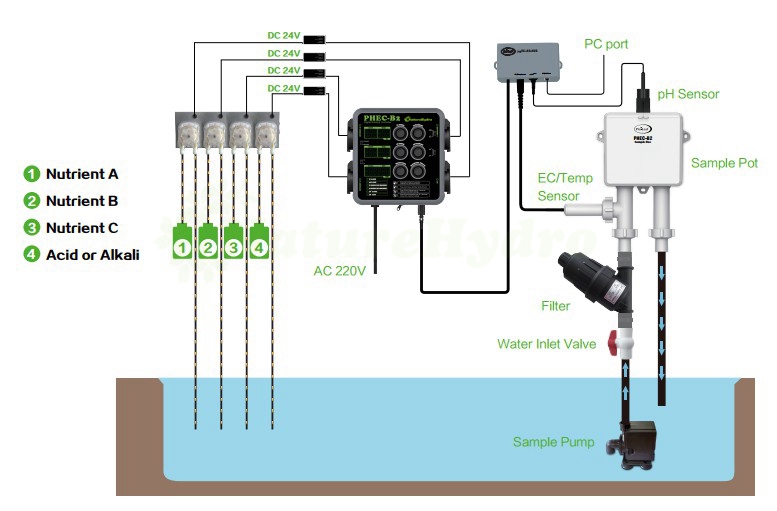

    Hc692fa32ae0242828f3f618309365027b_副本Hbea02c61e71e40ce97fd72ba33dcd44a3_副本

    H3f7decbc0a2445d9b7f93098b3bafc9ea
